Brand Xuzhou Ling model FL-3*8 type plasma cutting machine
Electric current AC control mode automatic drive
Metal plate cutting frequency band high-frequency action object metal
Principle of action maximum cutting thickness 200 (mm)
Product introduction
FL-3*8

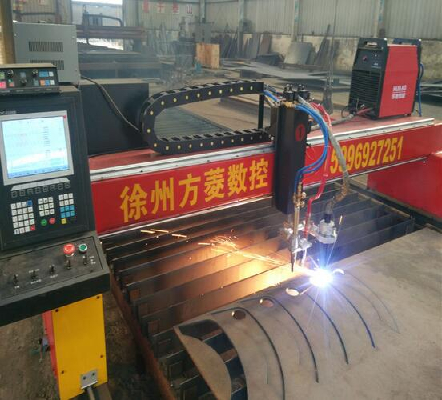

Light Longmen CNC cutting machine
The cutting machine is also a Longmen type structure, adopts shaft guide, bilateral drive, automatic adjusting system according to the configuration to the flame, plasma torch and supporting user requirements, can be configured into CNC cutting and straight cutting. Automatic height adjustment system. The main function of the control system is that the control system adopts industrial control computer, which can accept the external processing program to import.
Main technical indicators
Transverse width of guide rail
3M
Effective cutting width
2m
Rail longitudinal length
8M
Effective cutting length
7M
Flame cutting torch
The 1 group (Wuxi Longteng)
Flame cutting thickness
5-250mm
Plasma torch power
The 1 group (Wuxi Longteng)
Plasma cutting thickness
<20mm
Moving precision
0.01mm/ step
Running speed of the whole machine
12000mm/min
Driving mode
Bilateral drive
Automatic height adjustment
0-150MM
Two, working conditions
flame cutting
Plasma cutting (not included)
supply voltage
220V 10% 50Hz
supply voltage
380V 10% 50Hz
Input power
3KW
Input power
10KW
Gas source
Oxygen, gas
Gas source
atmosphere
relative humidity
90%
relative humidity
90%
ambient temperature
0-45 C
ambient temperature
0-45 C
Infrastructure
(supplier provides drawings, customer self made) bearing beam, cutting table, longitudinal towing rack
notes
Three, basic configuration
Mechanical part
Three point one
beam
3M
Three point two
Rail length
8M
Three point three
Flame cutting torch
Wuxi Longteng machine pressure type cutting torch 1 groups
Three point four
Auto ignition
Wuxi Longteng ignition device group 1
Three point five
Automatic height adjustment
The 1 group
Three point six
Plasma lift
The 1 group
Three point seven
Plasma power supply
China Power
Three point eight
High arc pressure
Changzhou Hayes
Three point nine
Cutting gas
Oxygen acetylene or propane
Three point one zero
Pipeline transmission mode
The transverse and longitudinal track rack
Three point one one
Driving mode
Double side driven T type guide rail
Electric control part
Three point one two
numerical control system
Beijing star peak
Three point one three
Switching Mode Power Supply
Ji'nan Guan Yang power supply
Three point one four
Relay
OMRON
Software
Three point one five
Automatic programming and nesting software
StartCam (standard)
Three point one six
Drive system / motor
Beijing Helishi (Syntron) / driver
Four, the numerical control part
This equipment uses the Beijing star peak SH-2300H flame / plasma cutting system, is a multifunctional, economical CNC cutting machine with high automation system, can control the machine to make a flame or plasma cutting. Color LCD screen, colorful. When operating, the system uses multiple functions, English, other languages menu, easy to operate.
Four point one
Using 32 bit high performance CPU and ultra large scale programmable device FPGA, the use of real-time multi task control technology and hardware interpolation technology, the work of high stability
Four point two
The machine structure is reasonable, with full control of optical isolators, strong anti-interference ability of plasma.
Four point three
256M large processing file storage space, to meet the operation and processing of a variety of complex procedures, easy to handle large programs
Four point four
Using ARM7 processor technology, the program runs faster and faster interface refresh rate.
Four point five
Plasma arc detection, initial positioning, corner signal control.
Four point six
Graphics library functions: 24 graphics (can be extended and customized) parts library, including the common basic processing parts;
Four point seven
Graphics processing function, the processing of graphics, rotation and X, Y mirror function
Four point eight
With slotting compensation function, and testing procedures in compensation is reasonable, make corresponding reports for the user to choose
Four point nine
Any selections and selected perforation point processing function.
Four point one zero
File name can show the Chinese name, to facilitate users to identify the contents of the stored document.
Four point one one
Breakpoint recovery, automatic power failure recovery function, breakpoint automatic memory.
Four point one two
Rollback, excerpts, breakpoint recovery, optional perforation location and time delay, preheating, perforation and other functions,
Four point one three
The small segment function, special treatment to walk smoothly, support Wentai format, can be widely used in metal and advertising, iron etc..
Four point one four
Is fully compatible with all kinds of nesting software.
Four point one five
CNC system can be processed within the file copy to U disk.
Four point one six
Chinese and English operation interface conversion, dynamic graphics display, 1-8 times the graphics zoom, fixed point automatic tracking, using U disk to read the program and timely software upgrades.
Four point one seven
Track input using U disk transmission CAD for the processing of the set of documents and the site manually write G code in two ways.
Four point one eight
USB socket, direct read U disk file function, convenient operation.
