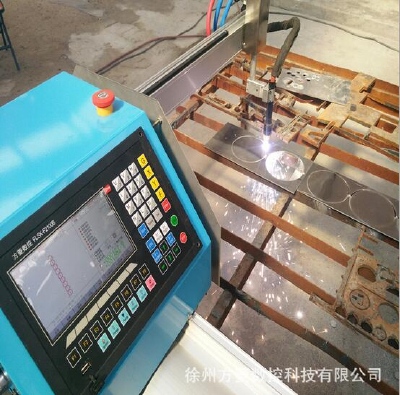

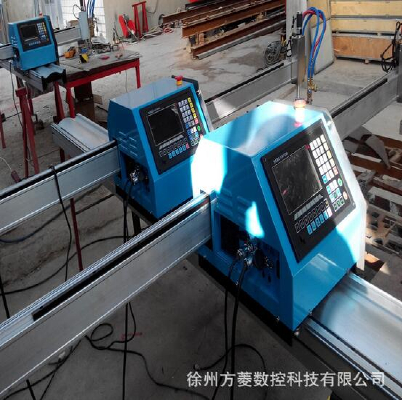

Brand Xuzhou Ling model FL-1525 type plasma cutting machine

Electric current AC control mode automatic drive

The maximum cutting thickness of 200 (mm) in the frequency band of the metal plate cutting

Main technical performance index of products

1 cutting shape: can be programmed to cut straight lines and arcs constitute arbitrary planar shape steel parts

2, cutting way: plasma / flame

3, driving mode: single side drive

4, cutting accuracy: national standard JB/T10045.3-99 ( 0.5MM)

5, control accuracy: / - 0.2MM

6, cutting speed: 0-3500mm/min

7, the cutting area: 1500MM transverse cutting, longitudinal cutting: 2500MM

8, track length: horizontal guide rail: 2000MM, longitudinal guide rail: 3000MM

9, the torch configuration: 1 sets of standard flame cutting torch,

10, cutting thickness: flame cutting 8-200MM plasma cutting: according to the customer with the plasma size and set

11, installation: combination of installation, can be free to move, not accounted for a fixed location, can also be placed on the steel plate directly cut

12, ignition device: manual ignition

13, adjusting device: automatic height adjustment

14, numerical control programming: support CAD Auto

15, file transfer: U disk transmission

16, cutting gas: oxygen propane or acetylene, gas

17, power supply voltage: 50HZ 220V

18, working environment: temperature: -10 degrees to 60 degrees Celsius, relative humidity: 0-95% no condensation.
