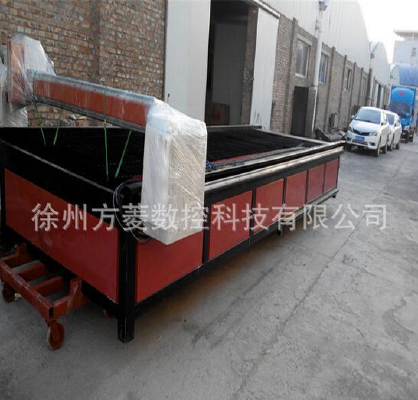

Brand Xuzhou Ling model FL-4012 type plasma cutting machine
Electric current AC control mode automatic drive
Metal plate cutting frequency band high-frequency action object metal
Principle of action maximum cutting thickness 200 (mm)
_]DX4QJ~WSV6X) 7O{1`6@GR
2015304172058_ copy
Part I: basic configuration technical parameters
1 machine size (length * width) 3600mm *:2200mm
2 effective cutting width 1500mm
3 effective cutting length 3000mm
4, the plasma torch power configuration
5 plasma punch cutting thickness is less than or equal to 18mm
6 control switch: Schneider
7 cutting torch height less than 30mm
8 cutting speed 0-10000mm/min
9 air path operating speed 0-15000mm/min
10 NC system of Beijing Feng Starr
The second part: key parts list
Serial number
Key component name
Model and specifications
Company
Number
One
CNC cutting machine main body
One thousand five hundred and thirty
platform
One
Two
Vertical 7 stage precision rack
Yuanping Ji'nan
67mm/ root
Thirteen
Three
Linear slide
20.
rice
Eleven
Four
numerical control system
Beijing Feng Starr
set
One
Five
Retarder
Yuanping Ji'nan
platform
Two
Six
Electric machinery
Stepper motor
set
Two
Seven
Driver
Ray plug 860
set
Two
Eight
Lateral chain
Veroc
pay
Two
Nine
Vertical chain
Veroc
pay
One
The third part: introduction of models
Main composition:
The 1 beam adopts Germany Messer technology, desktop frame, eliminate the structural torsional moment better, beam for the box type LV structure, which does not occur in long-term use.
2 the mechanical transmission system uses the precision rolling bearing and the processing precision is the national standard 7 level precision gear and the gear rack engagement.
3 active end beam: longitudinal rail adopts linear slide rail, so that the smooth running of the two track.
4 of all equipment and spare parts, with black, electroplating and other surface treatment.
5 of the spray processing, color can be chosen by the customer
The fourth part: working environment
Supply voltage - 220/380V 50Hz 1% 10% power frequency
- input power 5000W environment temperature 050 C
- relative humidity 95% (non condensing)
The fifth part: mechanical precision
1 machine accuracy:
A. longitudinal effective stroke > nominal size B. 20mm transverse effective stroke > nominal dimension 10mm
Linear positioning accuracy of C. 0.1mm/10m D. 0.4mm/10m straight line repeat precision
E. = 30mm F. cutting torch travel 5% speed setting speed
G. automatic lifting accuracy of 0.5mm
2 the overall accuracy of the machine:
A. (four) 0.5mm length error
B. diagonal deviation 0.5mm
C. back to the origin bias 0.3mm
D. diagonal straightness 0.5mm
E. intersection deviation 0.5mm (1000 x 1000mm comprehensive detection graphics)
F. 0.2mm GB inverse linear deviation error is less than 0.5mm.
Positioning accuracy of G. machine 0.2mm
