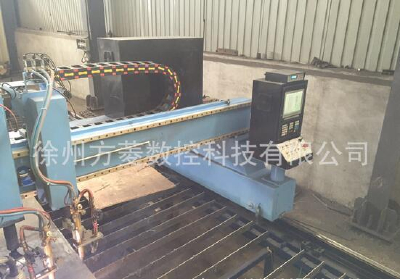

Brand Xuzhou Ling model FL-4012 type plasma cutting machine

Electric current AC control mode automatic drive

Metal plate cutting frequency band high-frequency action object metal

Principle of action maximum cutting thickness 200 (mm)

Xuzhou Fang Ling Numerical Control Technology Co., Ltd.

All the machines in this shop are qualified products with quality assurance and stable performance!

Hope to the company to the field inspection, guidance! Want in

Please contact: 17712175986 0516-85189227 Yang manager QQ WeChat: 406138266

Give me a trust, give you a surprise!!!

1, beam: the square butt welding structure, with good rigidity, high precision, light weight, small inertia characteristics. All welding parts are vibration aging to stress treatment, effectively prevent the deformation of the structure;

2, vertical and horizontal drive: the use of precision gear rack (7 accuracy) drive. The transverse guide rail adopts linear guide rail imported from Taiwan, a longitudinal guide rail is made by the characteristics of rail precision machining, to ensure the smooth operation of cutting machine, high precision, durable, clean and beautiful; the German imported gear planetary gear reducer can be very perfect exercise

3, the vertical drive frame (end frame): both ends with a horizontal guide wheel, which can adjust the compaction degree of the eccentric wheel drive frame at the bottom of the guide rail, which makes the stability in motion guidance;, drive system uses the world's top products - Japan imported servo motor and drive technology, the smooth operation of the machine, speed range wide and short acceleration time;

5, simple and easy to use automatic programming system, so that the numerical control programming is no longer complex, easy to;

6, the numerical control system uses the independent research and development of CNC cutting machine control system XF2007PC, with PLC for input and output control, so that the electrical system has excellent stability and super anti interference;

The main technical performance index of products: 7, ignition up: automatic ignition, automatic adjusting system of capacitive flame or plasma arc pressure automatic adjustment system;

8, CNC system: diamond system, XF2007PC control system, IPC CNC cutting system Haibao, start system. Simple and easy to use, stable and reliable;

9, CNC programming: AutoCAD based on the full automatic graphical programming software;

10, file transfer: with USB interface;

11, cutting gas: oxygen acetylene or propane;

Accuracy and balance

12, speed range: 0---15000mm/min (M / min)
